Product Description
A-Frame Vertical Storage Rack is a cantilever storage solution designed for upright storage of long materials such as pipes, rebar, steel bars, aluminum profiles, PVC tubes, timber, and other irregular long items. Unlike traditional pallet racking or shelving systems, this vertical storage rack uses an open-front A-frame structure that allows fast loading and unloading of materials without closed-end packaging.
It consist of racking frame and vertical arms for divider, you can add any hooks to create different section for pipes, tubes, steel, timber etc. The rack offers adjustable bays effortlessly by adding, removing, or replacing Single Divider Arms.
Manufactured by HEDA Shelves, this cantilever racking system combines high load capacity, flexible dimensions, and customizable configurations for warehouses, construction material storage yards, metal fabrication workshops, and industrial distribution centers.
What Is an A-Frame Vertical Storage Rack?

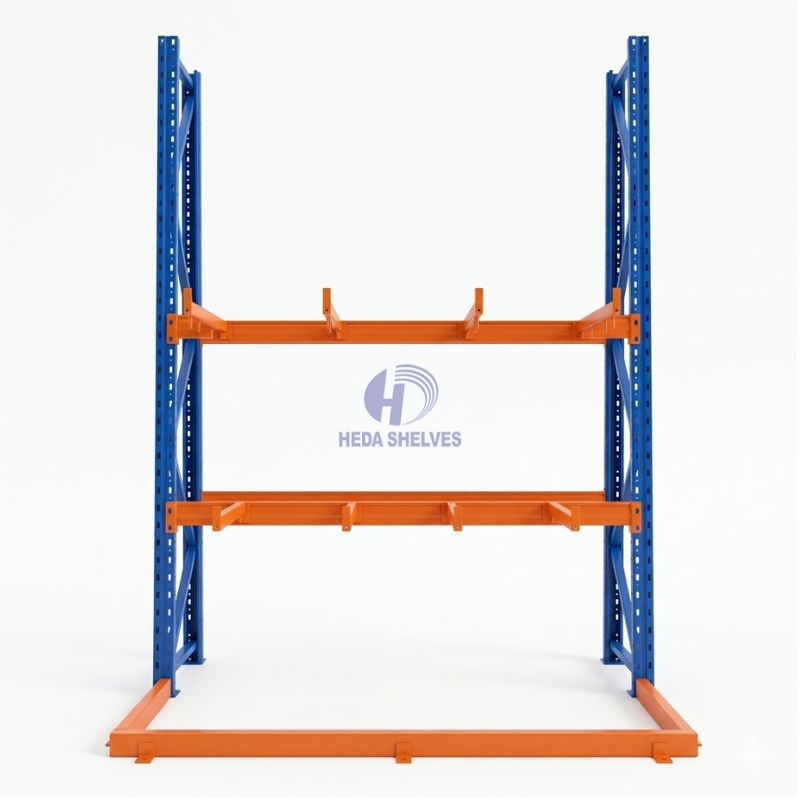

An A-frame vertical storage rack is a type of cantilever rack specifically engineered for vertical storage of long and bulky products. The structure typically consists of four core components:
- Upright Columns - provide the main vertical support structure
- Cantilever Arms - securely hold long materials at an angle
- Base Section - stabilizes the entire rack and supports floor loading
- Cross Braces - reinforce structural rigidity and prevent sway
Compared with conventional shelving systems or pallet racks, the A-frame rack offers:
- Easier handling of extra-long materials
- Better floor space utilization through vertical storage
- Open access for forklifts or manual loading
- Safer organization of irregularly shaped goods
- Faster material identification and picking
This cantilever storage rack is especially suitable for materials that:
- Have excessive length
- Feature irregular shapes
- Cannot be palletized easily
- Do not use closed-end packaging
Product Parameter
| Feature | Details |
| Brand | HEDA SHELVES |
| Structure Type | A-Frame Vertical Storage Rack |
| Load Capacity | 1-3 tons / Layer |
| Arm Capacity | 25 KG/Arm |
| Standard Model | Custom |
| Steel Thickness | 1.0mm - 2.5mm (Heavy-duty cold-rolled steel) |
| Color & Finish | Customizable Color available |
| Installation | Assembly Required |
| Compliance Standard | ISO9001 Certified/CE/ROHS |
| Business Model | OEM / ODM Supported |
| Packaging | Carton, Bubble Paper |
| Applications |
Storage Materials: Steel pipes, Rebar bundles, Metal bar stock, Aluminum profiles, Copper tubing, PVC pipes, Timber and lumber, Plastic extrusions, Industrial rods and shafts. Industry Applications: Construction material warehouses, Steel service centers, Hardware distributors, Manufacturing workshops, Pipe storage yards, Metal processing plants, Industrial supply warehouses, Logistics and distribution centers |
Case Studio For Australia Industrial Warehouse
Other Warehouse Storage Solution
Light Duty Cantilever Rack
Heavy Duty Cantilever Rack
Selective Pallet Rack
About Heda Shelves
Guangzhou HEDA Shelves Co., Ltd, with a history of decades as one of professional production and design warehouse storage racking and shelving manufacturers. Company main products are storage racking, warehouse shelves, widespan storage rack, heavy duty pallet racks, selective pallet rack, drive in pallet racking system, mezzanine floor racking, industrial mezzanine floor racking system, gather into type cantilever shelf, supermarket shelves, display racks and so on.
Heda shelves can customize different special-shaped shelves for customers, and provide customers with high-quality after-sales service and technical support to ensure that the products have leading design concepts and modern manufacturing processes.We would like to work with you hand in hand cooperation, win-win together!
Factory View
Case Show
FAQ
Q: Are you manufacture or trading company?
A: We are manufacture. Our factory has been specializing in supermarket shelves, warehouse racks and different kinds of display stands since 2001.
Q: Where is your factory? Can I visit ?
A: Our factory is located in Foshan, Guangdong. You are warmly welcome to visit whenever you are available.
Q: What is your delivery time?
In general, around 15-45 days. It also depends on the order quantity and shelving design.
Q: What is your moq?
A: Depending on Your Project. We offer layout services and tailor-made solutions for your warehouse or store.
Q: Can the mezzanine be moved or expanded later?
A: Yes. Because our systems use a modular bolt-on design, they can be disassembled, relocated, or expanded as your business grows.
Q: What is the maximum span possible between columns?
A: While spans vary based on load requirements, our "widespan" designs typically achieve 4 to 6 meters between columns to allow for unobstructed forklift movement.
Q:What certificate do you have?
A: CE, ROHS, ISO:9001
Q: What is the term of payment?
A: Payment terms: 30% of deposit upon signing the PI, and balance will be cleared by T/T before delivery.
