Guangzhou HEDA Shelves Co., Ltd. is one of the most reliable manufacturers and suppliers of thailand heavy duty storage rack in China, featured by quality products and good price. We warmly welcome you to buy high-grade thailand heavy duty storage rack from our factory. Welcome to view our website for more company information.
Designed for High-Load, High-Efficiency Warehouse Operations
The Heavy Duty Pallet Racking System from HEDA SHELVES is engineered for warehouse projects requiring reliable high-load storage, efficient pallet handling, and scalable expansion. Built for industrial environments, this system supports 1000–5000kg per level and adapts to complex warehouse layouts and operational flows.
| Item | Specification |
|---|---|
| Material | High-quality Cold-rolled Steel |
| Surface Treatment | Electrostatic Spray Powder Coating |
| Load Capacity | 1000 – 1500 kg per layer (Up to 5000kg/layer) |
| Number of Levels | 4 – 8 levels per bay |
| Beam Levels | Fully adjustable to match your pallet heights |
| Connection System | Pin and special screw (easy assembly, no nuts or clips) |
| Decking Options | Steel panel or wooden panel |
| Packaging | Knockdown for safe and cost-effective shipping |
Detailed Size:
| Item | Specification 1 | Specification 2 | Specification 3 | Specification 4 |
|---|---|---|---|---|
| Length (mm) | 1500 | 1800 | 2000 | 2500 |
| Width (mm) | 450 | 600 | 800 | 1000 |
| Height (mm) | 1800 | 2000 | 2500 | 3000 (or customized) |
| Load Capacity | 700 kg/layer | 500 kg/layer | 300 kg/layer | - |
| Upright (mm) | 80×40×1.8 | 80×40×1.6 | 80×40×1.5 | - |
| Horizontal Beam (mm) | 80×40×2.0 | 60×40×1.8 | 60×40×1.6 | - |
| Decking Thickness (mm) | 1.0 | 0.7 | 0.7 | - |

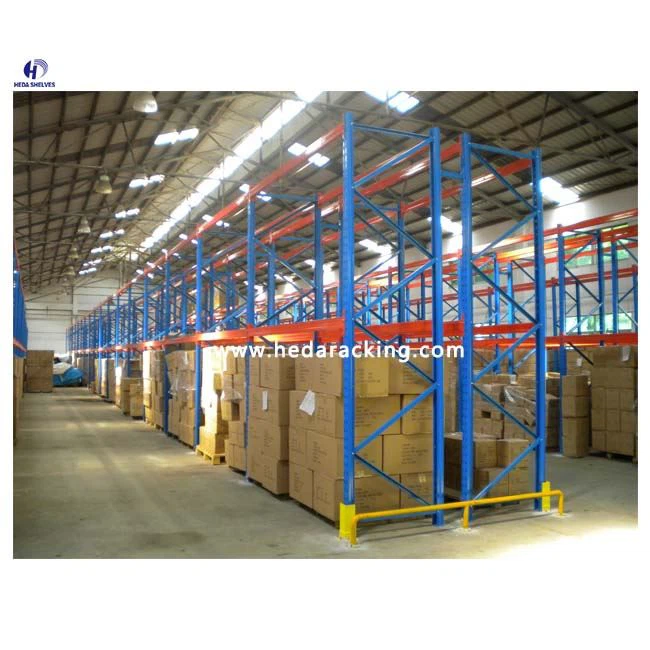

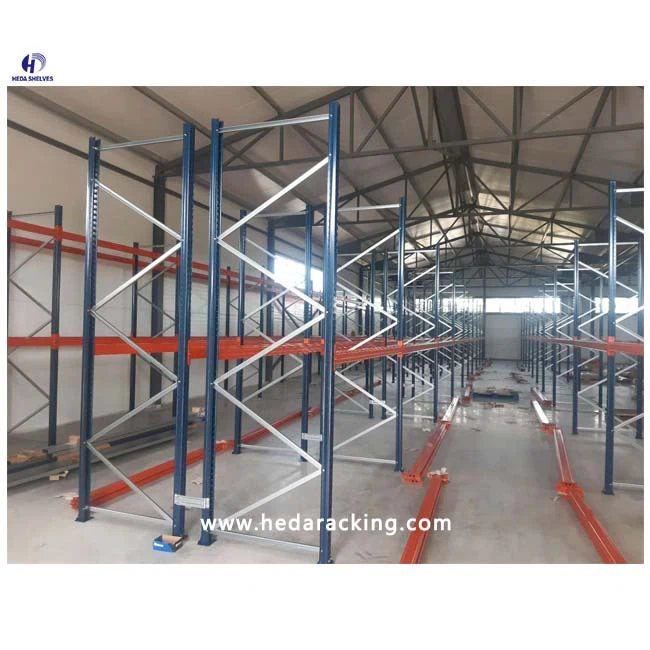

Warehouse Racking System Case in Thailand
Feature
· The heavy-duty storage shelf, made of high-grade steel, with static spray finish, is solid in construction and anti-rust in apperance.
· It is easy to assemble and dismantle,widely used in warehouse for goods storage.

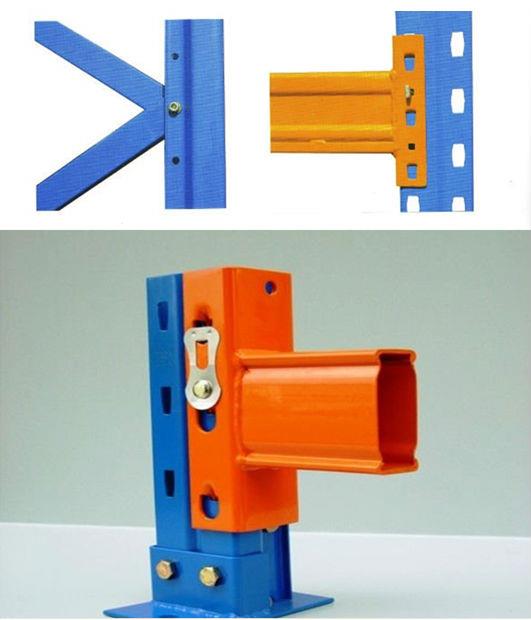

· The rack is connected with the plates and angle steel through the pins and special screws.
· Shelves of the rack can be adjustable freely.
· Layer boards can be steel panel or wooden panel.
· Different colors, sizes, layers, and thickness of material are available.

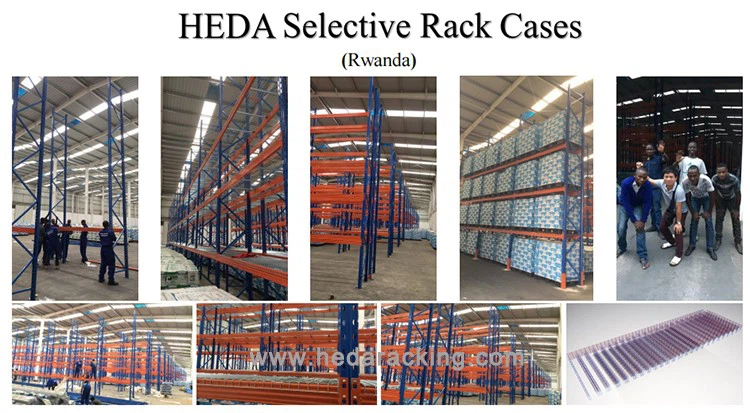

Successful Case
More Case pls leave your email and WhatsApp, Heda shelves will send you as soon as possible.
